ITEM SPECIFICS

Brand

Unbranded

Model Aircraft Refueler
origin

Republic of Korea
Size(Capacity)

PRODUCT DESCRIPTION

Introduction

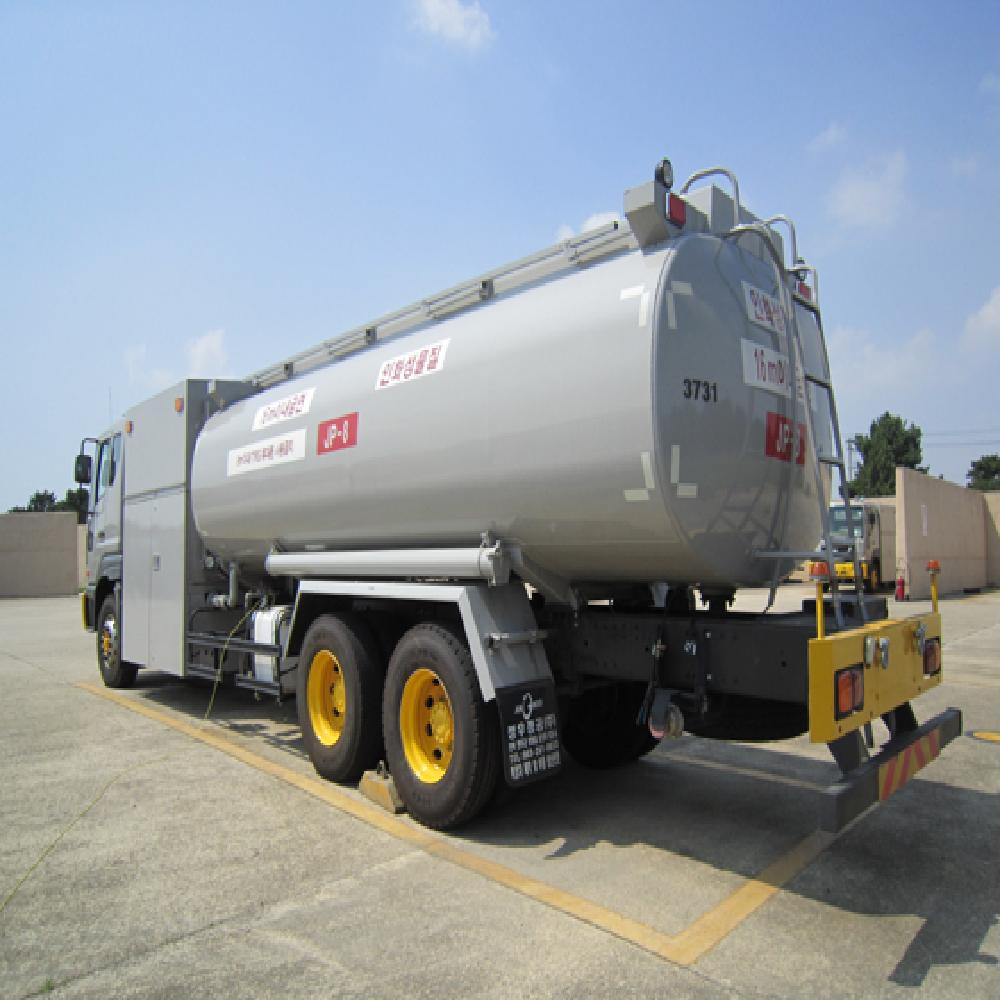

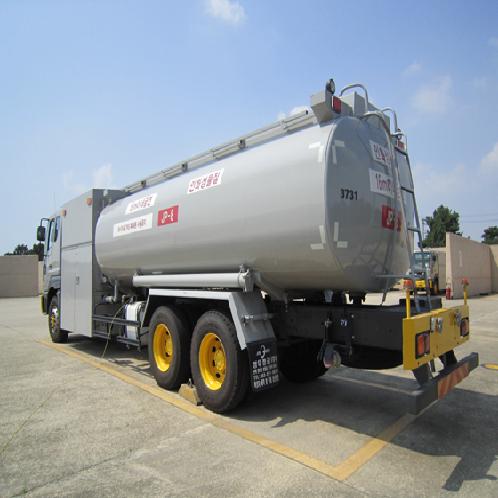

Designed and manufactured for the military aircraft, the helicopter and small commercial aircraft refueling. Main function are fuelling, de- fuelling and re-circulation. Safety devices of dead man control, Jet level sensor, emergency shut-off and brake interlock system tank.

Material of tank

Aluminum, Stainless Steel, Epoxy coated steel is available

Capacity of tank

1,000 ~ 10,000 U.S gallons with 5% allowance

Features

Refuelling system
Defueling system
Bottom loading system
Off loading system
Water detect & shut-off system
Interlock system
Self recirculating system

Tank Capacity		1,250 gal(5,000ℓ)	2,500 gal(10,000ℓ)	5,000 gal(20,000ℓ)	10,000 gal(40,000ℓ)
Tank Material & Thickness		STS304, 4T / AL, 5T Over
Tank Specifications(㎜)	Length	3,600	4,440	6,300	10,000
	Width	1,800	2,300	2,470	3,000
	Height	1,100	1,380	1,620	1,500
Flow Rate	Fueling	80GPM	300GPM	600GPM	600GPM
	Oil Discharge	50GPM	80GPM	150GPM	150GPM
	Bottom Loading	300GPM	300GPM	400GPM	400GPM
Centrifugal Pump		150GPM	300GPM	600GPM	600GPM
Filtration		150GPM	300GPM	600GPM	600GPM
Meter		150GPM	300GPM	600GPM	600GPM
Hose & Hose Reel with explosion proof motor		1.5"*22m	1.5"*22m	1.5"*22m	1.5"*22m
Hose & Hose Reel with explosion proof motor		1.5"*22m	2"*22m	2.5"*22m	2.5"*22m
Underwing Nozzle with HEPCV		2"	2.5"	2.5"	2.5"
Overwing Nozzle		1.5"	1.5"	1.5"	1.5"
Applied Vehicle		5 ton	9.5 ton	16 ton	25 ton
Basic Parts		Pressure Control Valve, Bypass Valve, Jet Level Sensor, Air Vent, Level Gauge, Venturi, Static Ground Reel, Sampling Kit
System		Emergency Shut-off System, Brake Interlock
Applicable Laws		IATA, EI(API/IP)
Basic Specifications		One-touch Manhole, Hose Box, Hose, Tool Box, Fender, Guardrail, Bumper
Optional		Lifting Platform, Deck Fuellling System, Commercial Type, Military Type

※ All items may be changed subject to customer needs.
